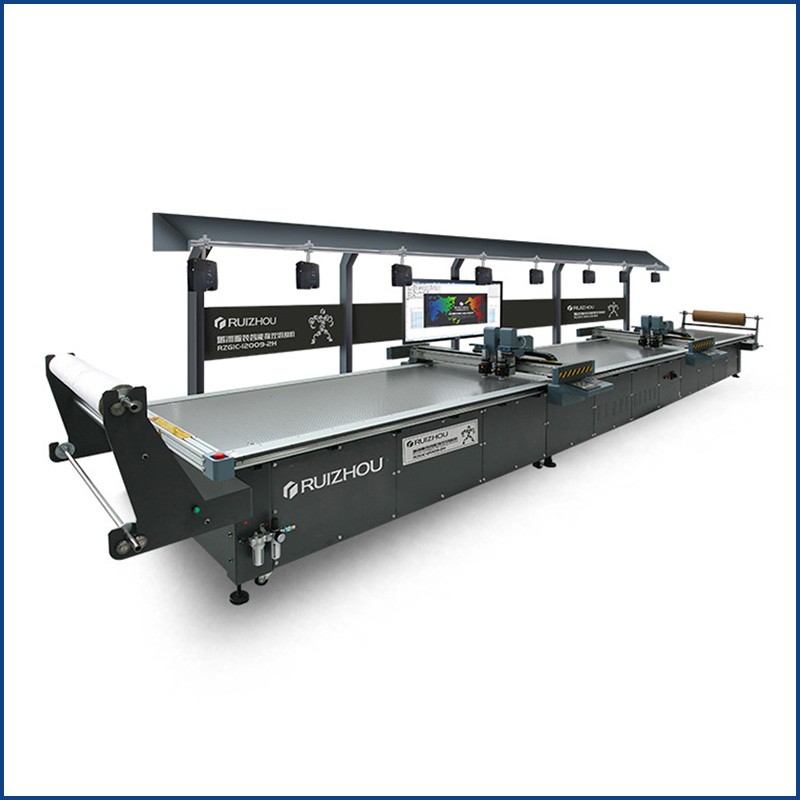

Ruizhou apparel cutting machine with knife cutting, not by laser. So it causes no burning to the materials. No smell. Ruizhou CNC computer control and servo motor, especially Ruizhou independent developed system ensure good cutting quality.
Ruizhou fabric cutting machines achieved zero manual cutting, automatic and intelligent cutting in garment industry. Ruizhou digital cutting machine achieved integrates functions of checks and strips fabric cutting, printed fabric matching, collar cutting.
1. Ruizhou fabric sample cutting machine suitable for apparel cutting and symmetric materials cutting. 2. Ruizhou cnc cutting machine automatic received layers'data from software. Two kinds of oscillating cutting tools for single or multi layer fabric cutting respectively.
Technical Parameter of Fabric Cutting Machine.
| Model | RZGIC-12009-2H | |
| Cutting speed | 100-1200mm/s | |
| Applicable thickness | 0.1mm-25mm | |
| Cutting Materials | Cloth, textile, fabric, PVC, PU, Leather, Carton, etc. | |
| Tools | Oscillating cutting tool | |
| Electric rotary tool | ||

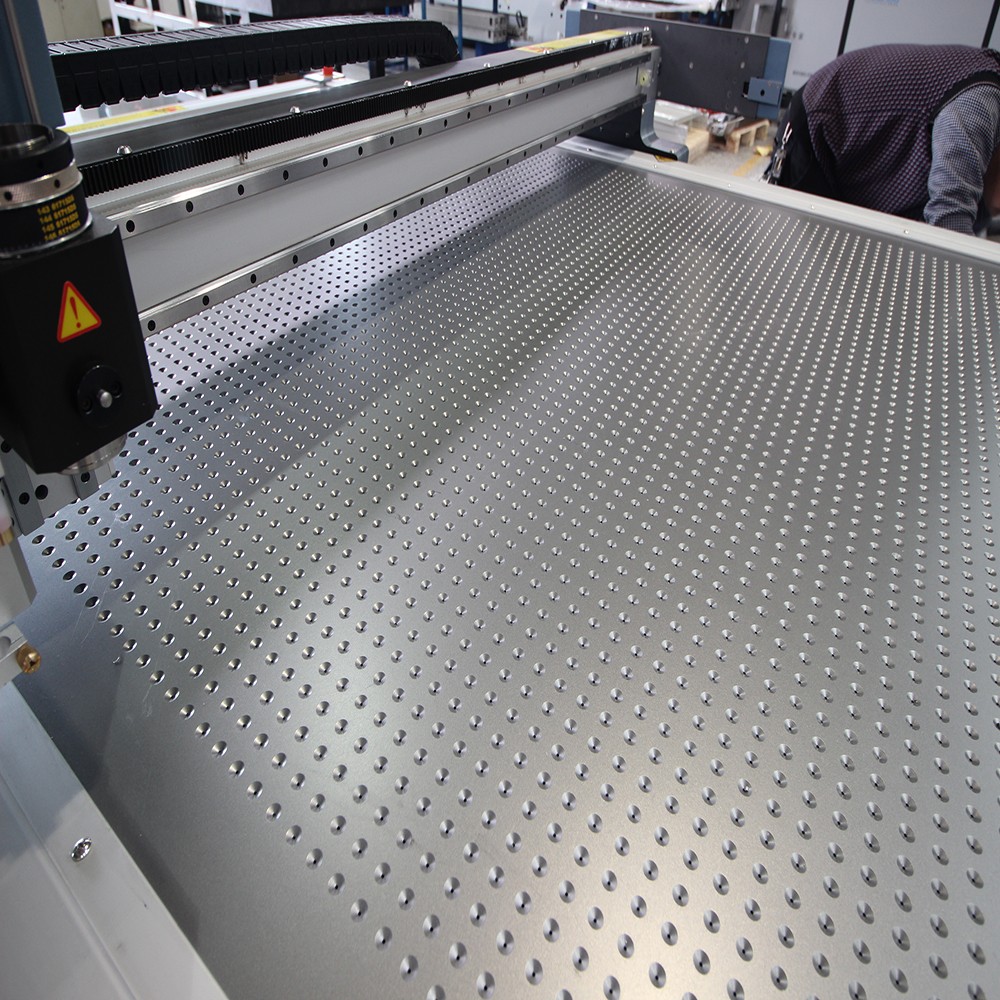

| Material fixing method | Divisional vacuum absorption | |
| Mechanical resolution | 0.07mm | |
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) | |
| Interface of transmission | Network port | |
| Buffer Capability | Once fast transfer | |
| Command system | HP-GL and GP-GL compatible formats | |
| Digital Control Panel | Liquid crystal display and touching button | |
| Transimission Materials | Imported staight line guide track, synchronous belt | |
| Motor | Servo motor | |
| Cutting Blade Rotate | Vibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min | |
| Air Pump Voltage | 9KWX2 | |
| Machine Working Voltage | AC 220V ± 22V, 50±1HZ/60±1HZ | |
| Air Pump working Voltage | AC 380V ± 38V | |

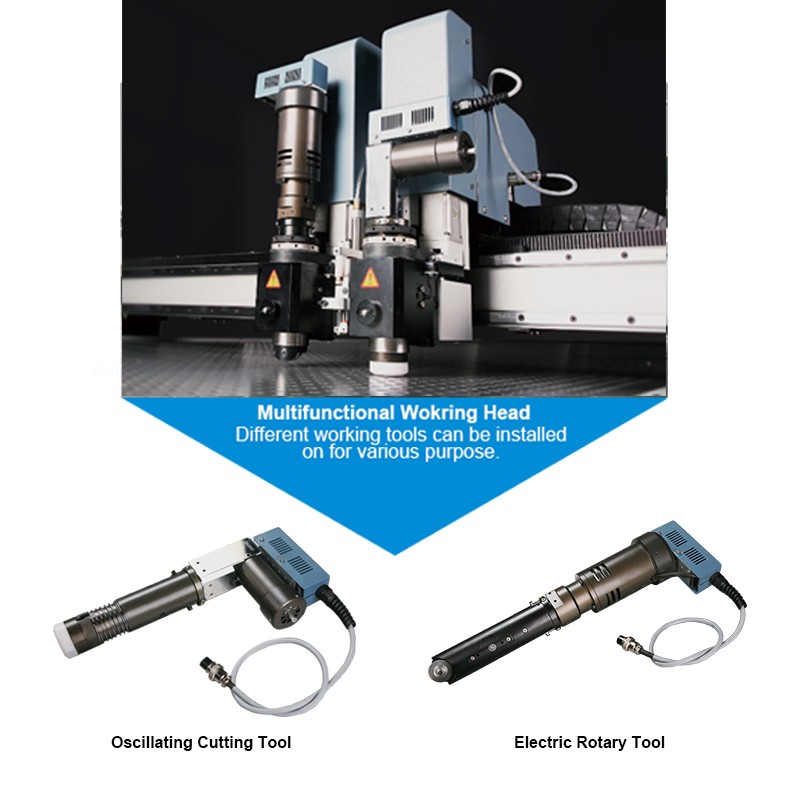

Different tools for option:
1.Driven Rotary Tool for fast cutting.
2.Electric Oscillating Tool for fast cutting.
3.Heavy-duty Electric Oscillating Tool for fast cutting.
Advantage:

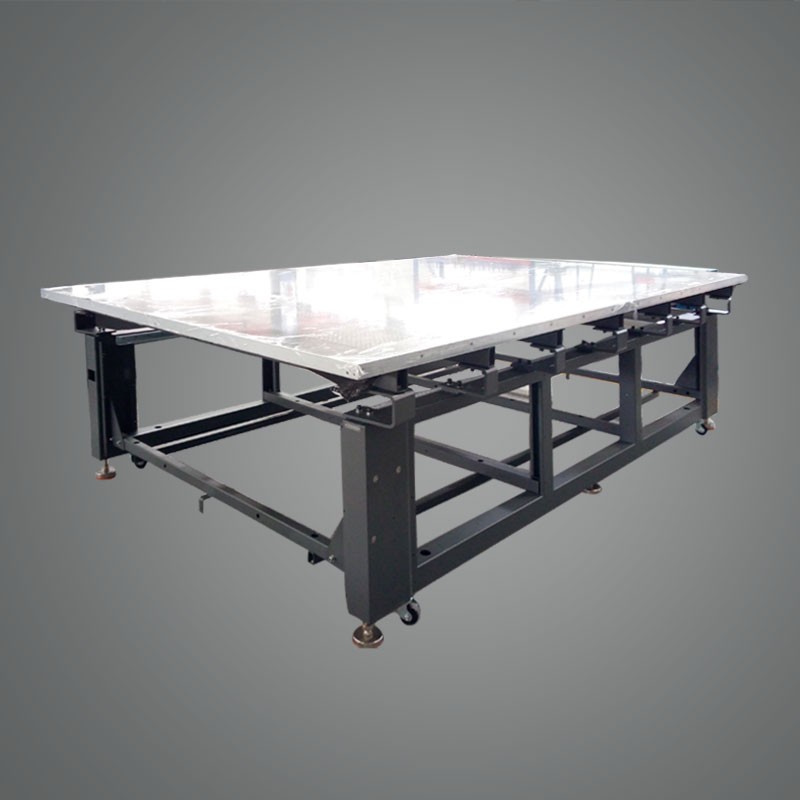

1.A whole piece aluminum platform.
Adopting honeycomb structure principle, it is strong, anti-corrosion, durable, sound-absorbing and heat insulating.
2.Welding stable machine structure.
The machine form was welded, avoiding the deviation caused by the vibration when it works. High stable.

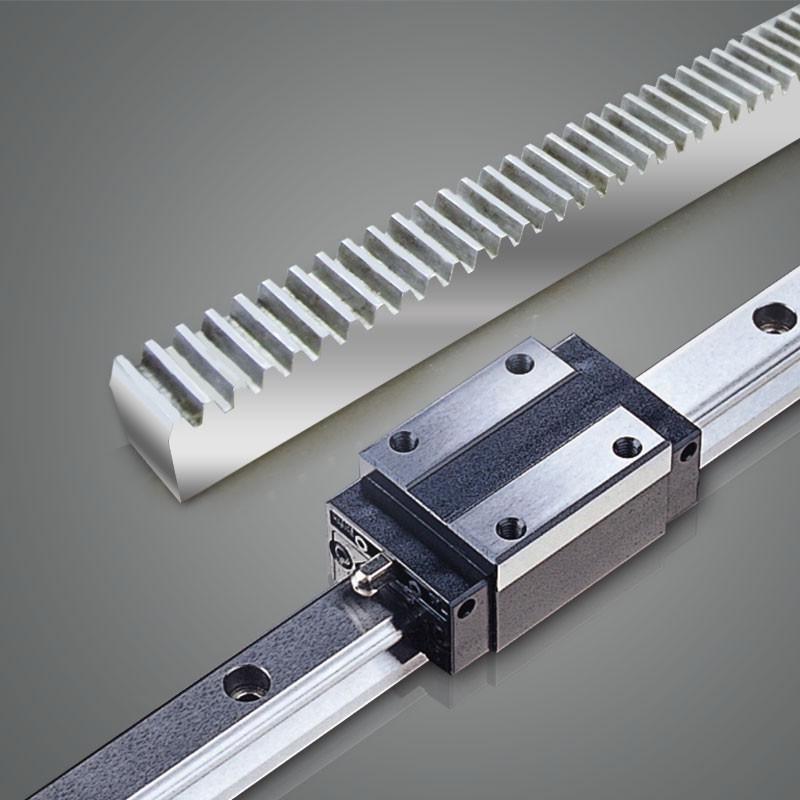

3.Gear rack & Screw lever.
Adopting linear guide from Taiwan as the gear rail, ensures high speed and stable working quality and high accuracy.
4.Safety device.
Being equipped with infrared sensor and emergency stop devices at the four corners of the machine, guarantees safety.
5.Fast and convenient tools changing.
A set of advanced and fast optional tools meets different demands according to the customers' material.
6.Adopting advanced frequency converter.
It saves power by 30% when compared with others.
7. Multi-layer materials feeding shelf.
Equipped with motor and pneumatic clip, it can send 4 layers materials once at a time, precisely.
1.Accurate
High requirement of ourselves and persistent striving for excellent, lead to high accuracy. With our laser location device and other elaborate devices the cutting machine meets the cutting precision: 0.3mm to 0.5mm.
2.Smooth
The Oscillating Cutting Tool assures our cutting machines cut smoothly. Even very complex lines, irregular lines, can be cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual workers.
3.Diverse
Material -- It can cut nearly all of soft materials and some hard materials.
The Cutting thickness -- 0.4mm to 50mm, even larger, according to the material and your requirement.
Function -- complete cutting, half cutting, dot cutting, V- cutting; line folding; marking.
4.Exquisite
The cutting machine is able to cut complex patterns with high precision and repeating precision.
5.Multi-layer
This garment plotter can cut several layers materials, and very suitable for some customized production.
Now a lot of famous firms are our partners. They are using Ruizhou cutting machines.
RUIZHOU requite her customers with sincerity. She wins the market with good services, build brand with good quality, strive for excellence with technology. Over the past years, RUIZHOU has received trust and praise from our customers. Our product sold to European, Korea, India, Mexico, Malaysia, Vietnam, Hong Kong and Taiwan.
The clients we have severed, at home and abroad, up to 5000 famous companies, such as:
KUTESMART,IWODE, HLA, HUBAO, KALTENDIN, VIRTUE, GIUSEPPE, SUNDANCE, EEKA FASHION, REGINAL MIRACLE, SAINT ANGELO, JUDGER, DUANYI, etc.
Ruizhou CNC Cutting Machine also be used in a lot of other areas such as footwear, garment, bag & suit case, airplane, package, advertisement, furniture, lamp, box, color print, packing, car mat, apparel, etc.
We take part in exhibitions both at home and abroad every year.
Please don't hesitate to consult us if you have any questions.

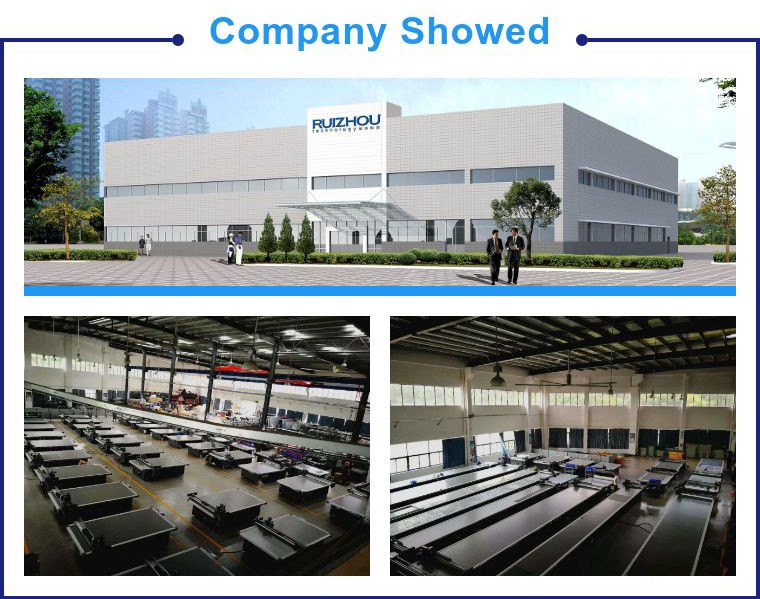

RUIZHOU is founded in 1995, we have more than 30 years experience for cnc cutting machine. Our Boss Mr. Guo is in this industry since 1990. GUANDDONG RUIZHOU TECHNOLOGY CO., LTD. Is registered in 2004, as a new image to be in CNC Cutting Machine industry.
We are a professional and famous manufacturer of cnc cutting machine in China, which has more than 30 years experience, named RUIZHOU.
Ruizhou cutting machine can cut different kind of soft materials. And it is applied in different industries, such as shoes, bags, garment, carton boxes, composite materials, automotive industries, etc.
1.Please inform us what materials do you cut and your materials's size(width and length). We will recommend you suitable model according to your materials texture and size. 2.And it is appreciate if you can send us some materials for trial cutting, we will record cutting videos for your reference 3.If it is possible, welcome to visit our company and factory.
1.We are professional in cnc cutting machine more than 30 years experience, the stability and service is worth your trust; 2.Some of our technician with more than 30 years experience, some of them can speak English fluently; 3.All the machine will be tested final checked before shipping to ensure the stability, and we send video to you for confirmation.
It is flexible, when luckily there is stock or newly improved models or produced for exhibitions worldwide, you can get it very soon. 1> Normally, our delivery lead time is around 10 to 20 days for main cutting machine in standard. 2> If change some settings, or several sets orders to form production line, lead time is about 20-30 days. 3> For some special request or solution, we will communicate with production dept. firstly before we confirm delivery time to you. We hope you catch time to order in advance, not in a hurry, so we can have more time to debug strictly in factory for you.
The warranty is 1 year, but not including the easy-worn spare parts, such as blade, mat, etc. To tell you honestly, during these years, we have been improved a lot for durability of machine from frame to function, many old clients reorder new RUIZHOU machines with old machines running normally even after 6 to 10 years! You can enjoy whole lift maintenance and technical consultant, support!
90% of our electrical components are originally imported, in order to make sure the service life of machine and stability. The configuration detail shall be shown in our quotation. All the configuration is set more reasonably after all these years' practical experience.
If you buy our machine, we will provide free installation and training.
We process CE and ISO certificates.
